ARCH1390------KIERAN CHAN

PROJECT 2 FINAL SUBMISIION

For this assignment, I continuously using the first model concept, the breaking form. For the project 2 ,the external of the house looks like a glass house was hit by 5 stone and they live together. I have used 2 materials which are glass and stone, the most area of my building is made of glass because I prefer to put the house where the surrounding is trees and grass, close the nature. And for my clients is designer, light house make people feel good and close to nature maybe is easier to get the idea than in city somewhere are noisy. Because of the most area made by glass, I built a small space which looks like hang on the ceiling. The small room was made by the concrete and the only use for the small room is have a rest so there are no desks and chairs.

2 posters

house in environment

animations

http://youtu.be/l8UZg-LIDZw

project processing

This is the draft of my project. The concept of this assignment is the breaking cubes. I decided put my house in a nature environment like the forest with waterfall. I will use the materials like the glass and stone to improve my house. For the clients, I prefer to build for designers or someone who likes different.

Precedent study

1) A brief outline of Project 1 – What was your chosen architecture? What were the concepts unpacked in your concept model?

My chosen architecture for project1 is Morphosis. For the project1 I made a digital model which focus on the concept of the Cooper Union (41 Cooper Square), and the two concept is breaking and twisting are using in my model.

2) A visual analysis of 2x precedent studies as a pair – One from your Project 1 architect, another from an architect of your own choosing. How are they conceptually similar to Project 1?

Project 2 concept model by Morphosis:Cahill Center for Astronomy and Astrophysics at Caltech

Cahill Center for Astronomy and Astrophysics at Caltech was designed by Morphosis and it is a 100,000-square-foot academic building with a 148-seat auditorium, library, classrooms,offices,conference rooms, and basement-level laboratories.

For this chosen building I will continuing my concept with fractured form and breaking ideas but I will improve my inside space to feel more free and not only the outside looks like a breaking building but also the interior space.

**********************************************************************************************************************************

another architect 3XN: The Flag

The Flag proposal for the Danish pavilion at EXPO 2010 is easily recognisable from a distance.The entire concept for the Danish pavilion is built up around the vision behind the four special focus areas in the Danish communication platform. It was built in Shanghai China and the area is 3,000 square meters.

*********************************************************************************************************************************

3) A Design Proposal and Design Draft for Assignment 3 – List three specific building types and functions for your new design. How can they challenge the concepts and ideas you have looked at in

Project 1? Select one and begin a first design draft.

* SHOPPING MALL
* LIBRARY
*ARCHITECT STUDIO

For the architect studio, I have to be more considering on the exterior view and make it enough to attached clients vision. Second for the library I have to make it looks quiet and not much more ambition but to show clearly my concept breaking. Breaking form is a full of ambition . The last one more interior space is needed.

4) A Short Description on your Prescribed Additional Representation – What is the relevance of the technology you have selected to the nature of your design? What kinds of techniques and processes would you use from this technology in order to engage with the design of your architectural solution?

I have chosen 3Ds Max to the nature of my design because it has lots realistic materials to make my building looks more realistic and maybe using photoshop to fixing some little problems.

For the further I would like to use Cryengine to make a real landscape for my model.

Assignment2--model of markers and build AR

screenshot from build AR

video from build AR

Assignmen2-- posters

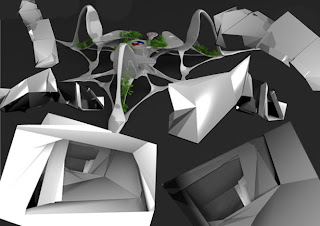

Those are 2 posters I did for my assgnment2 model of Morphosis.

Assignment2--Markers of Building AR

four marker pictures

Assignment 2--Final digital model and with a model in environment

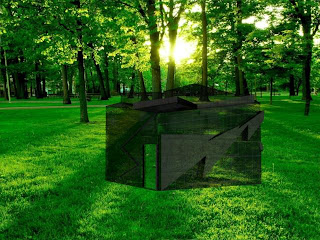

Those 3 renderings below are showing my final digital model. The original concept of my model is breaking so I follow the concept to develop my model. From my old model there are lake of the inner space so in this development model I do some change and make more inner space(picture1).and make it longer than old model and make it more space to stay.
